I am a full trained and licensed CAD draughtsman using the Graitec Advance Steel 2015 3D software system. This package allows me to prepare 3D models and fully developed fabrication drawings along with single part drawings.

I also provide material and fixing schedules and these documents can be provided in either DWG/PDF/DXF or NC format.

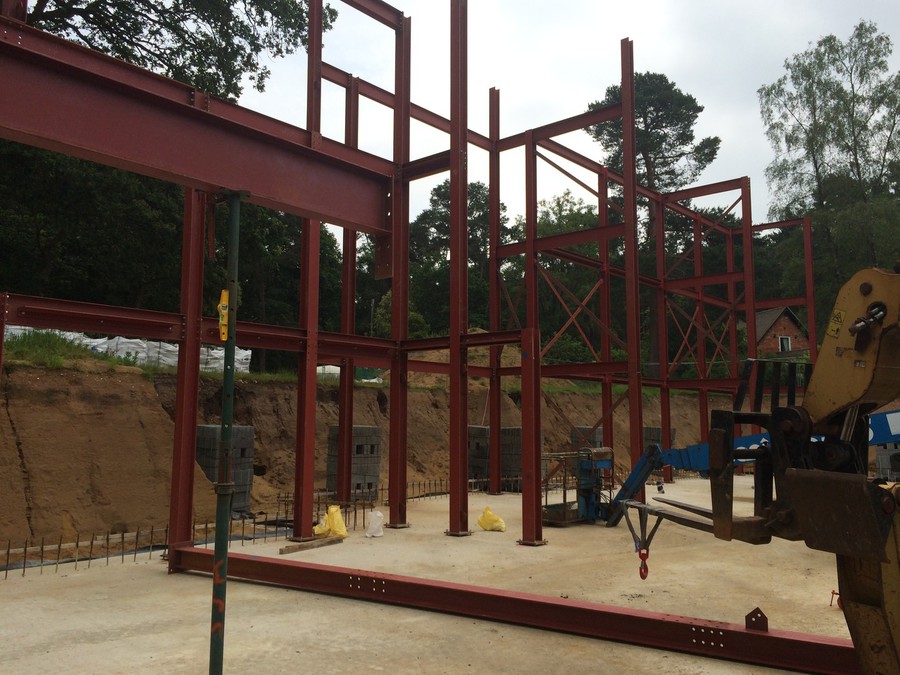

If required the NC format can be sent directly to affiliated steel suppliers who are then able to provide the steel components pre fabricated and primed ready for site assembly, both improving delivery times and reducing labour costs.

If you would like any further information or to discuss your job requirements and obtain a no obligation quotation please do not hesitate to contact me.
